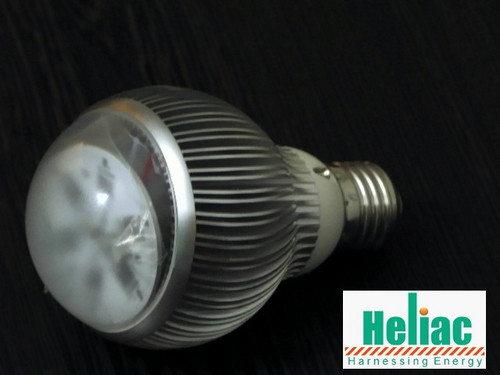

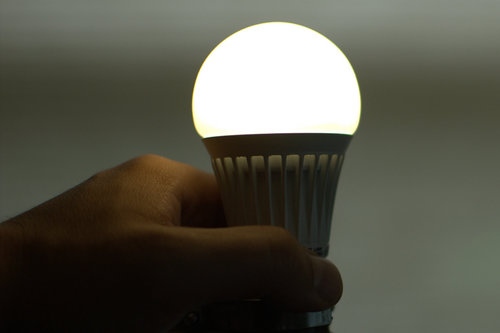

Specification of LED Bulb
Model No. |
3W LEDB |
6W LEDB |
9W LEDB |
Input Characteristics |
|||
Rated Voltage |
240V AC |
240V AC |
240V AC |
Rated Current |
15mA |
30mA |
45mA |
Rated Wattage |
3W, ±0.5W |
6W, ±0.5W |
9W, ±1W |
Operating Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
Power Factor |
>0.95 |
>0.95 |
>0.95 |
Total Harmonic Distortion(AThd) |
<30% |
<30% |
<30% |
Min. Lamp Ignition Voltage |
100Vac |
100Vac |
100Vac |
Operating Voltage Range |
100-300 V AC |
100-300 V AC |
100-300 V AC |
Output Characteristics |
|||
LED Type |
High Brightness Power LED |
High Brightness Power LED |
High Brightness Power LED |
LED Make |
Cree / Everlight / Osram |
Cree / Everlight / Osram |
Cree / Everlight / Osram |
Total Lumen Output |
270-310 lumen |
540-620 lumen |
810-940 lumen |
Color Temperature |
2700k – 6500k |
2700k – 6500k |
2700k – 6500k |
Input Protections |
|||
Surge Protection |
Yes |
Yes |
Yes |
Output Protections |
|||
Open Circuit |
Yes |
Yes |
Yes |
Thermal Protection |
Yes |
Yes |
Yes |
General Information |
|||
Operating Temp. Range |
0 to 55°C |
0 to 55°C |
0 to 55°C |
Lamp Starting |
Instant |
Instant |
Instant |
Burning Life |
50000 Burning Hrs |
50000 Burning Hrs |
50000 Burning Hrs |
Re-Lamping |
Yes |
Yes |
Yes |
Insulation Resistance |
500Vdc Between I/P & Earth |
500Vdc Between I/P & Earth |
500Vdc Between I/P & Earth |
H.V. |
1.5KV For 60Sec. |
1.5KV For 60Sec. |
1.5KV For 60Sec. |
Suitable For Luminaries With Protection Class |
I |
I |
I |
Fixture |
|||
Enclosure |
Aluminum Die Cast |
Aluminum Die Cast |
Aluminum Die Cast |
Front cover |
Milky light diffuser |
Milky light diffuser |
Milky light diffuser |
Holder type |
B22/E21 |
B22/E21 |
B22/E21 |
Connection |
Direct in 240VAC holder |
Direct in 240VAC holder |
Direct in 240VAC holder |
