APFC Active Power Factor Controller

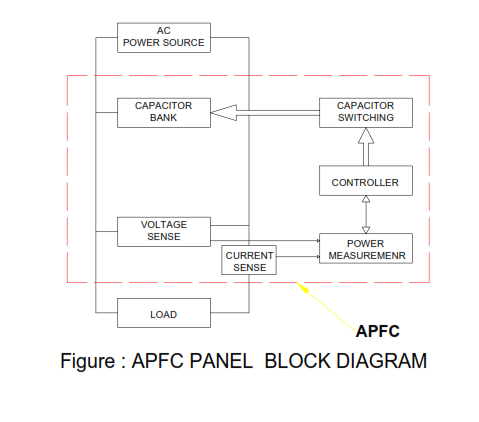

Automatic Power Factor Correction System (APFC)

CTR’s APFC panels are designed by considering the harsh environment and voltages quality available at the customer premises. Apart from the standard rating we design and built the systems suitable for the electrical installation, load cycle behavior. Our APFC Systems consist dura life Capacitors, high Linearity Reactors, Extra heavy-duty contactors / Thyristor, and wired with super quality cables.

Standard Design of APFC Panels
Total Rating	Product Code	Stage 1	Stage 2	Stage 3	Stage 4	Stage 5	Stage 6	Stage 7	Stage 8	Stage 9	Stage 10	Stage 11	Stage 12
12	ARPC12/5	1	2	3	3	3
16	ARPC16/5	1	2	3	5	5
21	ARPC21/4	1	2	3	5	10
25	ARPC25/5	2	3	5	5	10
37.5	ARPC37/5	2.5	5	10	10	10
47.5	ARPC47/6	2.5	5	10	10	10	10
60	ARPC60/6	5	5	10	10	10	20
75	ARPC75/6	5	10	10	10	20	20
85	ARPC85/6	5	10	10	20	20	20
95	ARPC95/6	5	10	20	20	20	20
100	ARPC100/6	5	7.5	12.5	25	25	25
115	ARPC115/7	5	10	20	20	20	20	20
125	ARPC125/7	5	7.5	12.5	25	25	25	25
132.5	ARPC132/7	7.5	12.5	12.5	25	25	25	25
150	ARPC150/8	5	7.5	12.5	25	25	25	25
175	ARPC175/8	5	7.5	12.5	25	25	25	25	10
200	ARPC200/8	5	7.5	12.5	25	25	25	50	50
225	ARPC225/8	5	7.5	12.5	25	25	50	50	50
250	ARPC250/8	5	7.5	12.5	25	50	50	50	50
300	ARPC300/9	5	7.5	12.5	25	50	50	50	50	50
350	ARPC350/10	5	7.5	12.5	25	50	50	50	50	50	50
400	ARPC400/10	12.5	12.5	25	50	50	50	50	50	50	50
450	ARPC450/10	12.5	12.5	25	50	50	50	50	50	50	100
500	ARPC500/10	25	25	50	50	50	50	50	50	50	100
550	ARPC550/10	25	25	50	50	50	50	50	50	100	100
600	ARPC600/10	25	25	50	50	50	50	50	100	100	100
650	ARPC650/10	25	25	50	50	50	50	100	100	100	100
700	ARPC700/10	25	25	50	50	50	100	100	100	100	100
750	ARPC750/10	25	25	50	50	100	100	100	100	100	100
800	ARPC800/10	25	25	50	100	100	100	100	100	100	100
850	ARPC850/11	25	25	50	50	100	100	100	100	100	100	100
900	ARPC800/11	25	25	50	100	100	100	100	100	100	100	100
1000	ARPC1000/12	25	25	50	100	100	100	100	100	100	100	100	100

Benefits of Power Factor Correction

Eliminate power factor penalty
Reduction in kVAR Demand
Reduction in KVA Demand
Reduction in Line current
Avoid Power factor penalties
Reduction in line loss
Reduction in switchgear rating
Lower energy consumption by reducing losses

Applications:

Automobile industries, Cement Industries, Metal Industries

Chemical & Fertilizer Plant, Pharmaceutical Industries.

Hospitals, Malls, Banks, IT Parks, commercial Complexes.

Heliac Energy Private Limited

Automatic Power Factor Correction System (APFC)

Benefits of Power Factor Correction

Applications:

Highlights

Power from 12 to 1000 kVAR

Automatically switch on/off relevant capacitors steps for consistent power factor.

Thyristor / Contactor Switched APFC System

High level of safety through Internal Fuse and Over Temperature Sensor provided.

High life expectancy

1.7 to 2.7 Linearity hence low temperature rise, magnifies life

Copper wound

Voltage drop 1 %, 2 %, 5, 7 %, 14 %,67 %.

Protection to each steps

Powder coated metallic frame structure design
